China Led Surge Protection Device Led Street Light ELECTROSTACTIC PROTECTOR

Ask Lasest Price
Brand Name :	BRITEC
Model Number :	BRLED-06P-NG
Certification :	TUV/CB/CE/ROHS/ISO9001
Payment Terms :	T/T, D/P
Supply Ability :	50000 pieces per month
Delivery Time :	15 days after payment

Add to Cart

Product Details
Company Profile

China Led Surge Protection Device Led Street Light ELECTROSTACTIC PROTECTOR

275V Outdoor LED SPD 10kA Surge Protection led street light surg protector

LED Surge Protection Device Modules Outdoor SPD :

Led:
Maximum Continuous Operating Voltage:275~305VVAC
Maximum Discharge Current/Imax:6kA(8/20us)
Open-Circuit Voltage/Uoc:6kV
Protection Level/Up:1.3kV

Wiring method:Parallel installation

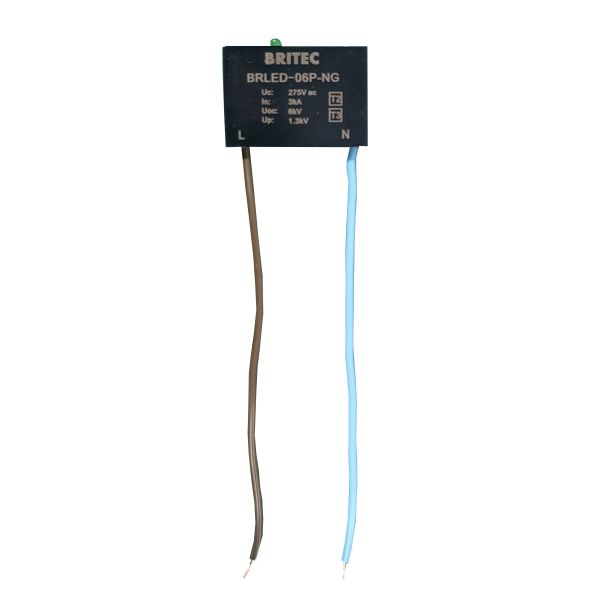

	BRLED-06P-NG
SPD classification according to EN61643-11	Type 2 + Type 3
SPD classification according to IEC 61643-11	Class II + Class III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	3kA
Maximum discharge current (8/20μs) Imax	6kA
Voltage protection level Up	≤1. 3kV
Response time tA	≤100ns
Operating temperature range Tu	-40°C~ +80°C
Operating state / fault indication	LED green / red
Enclosure materail	Thermoplastic UL94-V0

LED Surge Protection Device

Application:

Luminaire protection device SURGE PROTECTOR.

When electronic components from part of lighting system, it is often necessary to protect such components against powersupply interruptions and electric overloads (power surge).

Why is protection needed?

• LED technology has become the reference technology for lighting, mainly because of four characteristics: efficiency, versatility, energy savings and longer life. In spite of these benefits, the technology has a number of drawbacks: Higher cost of implementation (initial investment) and internal electronics (LED optics and drivers), much more complex and sensitive to overvoltage than in the case of traditional light sources. For these reasons, the use of overvoltage protection systems is a very cost-effective investment, since it extends the life of the luminaires, ensures the cost effectiveness (ROI) of LED projects and reduces the costs of maintenance and replacement of luminaires. A surge protection device (SPD) connected upstream of the driver, complements the intrinsic immunity of the luminaire, creating much more robust protection against the effects of lightning and overvoltage.

Surge protection for LED Advantages:
1). We have our own factory.
2). Same design, better quality; Same quality, better price; Same price, better after-sale service.
3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce
the defective percentage effectively, control the quality.
4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.
5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish
long-term cooperative relationship.
6). Various Style, suitable for customers' demand
7). We can do OEM&ODM, produce according to your original sample or pictures.

Company Information:

We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.

FAQ:
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years experience.
Q2: Do you have any MOQ for order?
A: MOQ is 1pcs.

Q3: What's your terms of payment?
A: 30% T/T, balance before shipment.

Q4: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.

Q5: What's the lead time?
A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
