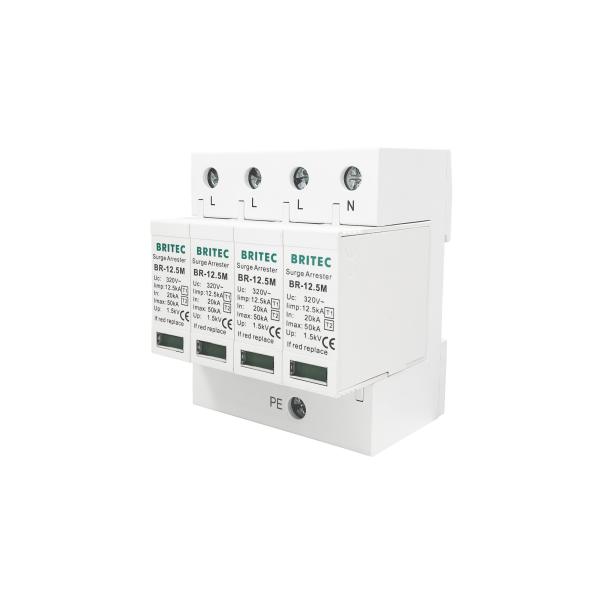

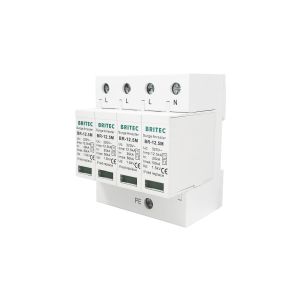

Best Price Type 1+2 Lightning Protector AC Power 4 Pole Surge Suppressor

Type 1+2 Surge Protector Technology characteristic:

	BR-12.5M 320 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	320V
Lightning impulse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20us) In	20kA
Voltage protection level Up	≤1.5kV
Max. backup fuse	160A
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²

Dimension:

Type 1+2 Surge Protector Application:

• Used in the TN-S power supply system of AC 50/60HZ.

• Suitable for system power protection, such as power distribution cabinet, switch cabinet, AC distribution board etc.

• To protect from direct and indirect lightning impulse and other transient over voltage.

Workshop:

Britec owns international advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the domestic advanced, we also can help customer OEM/ODM.

Company Information:

Wenzhou Britec Electric Co.,Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences. We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Certifications:

Britec offering over 30 kinds of SPD products which has CE, CB, and TUV certification. The company pass the approval of ISO9001 already.

FAQ:

Q1. What's your lead time and shipment?
A1: 20 days which depends on the order items and quantity. We can ship the goods by express like TNT, DHL, UPS, Fedex etc. Or by air and by sea with cargo company.

Q2. What's your MOQ?
A2: MOQ 100pcs for our items; MOQ 500pcs for OEM order.

Q3. How about the Quality?
A3: We have the professional and experienced engineer team and strict QA and QC system.

Q4. What is the payment you accept?
A4: T/T or Paypal. 30% deposit and 70% before shipment.

Q5. Do you accept OEM or ODM?
A5: Yes, we can customed other special specifications as your requirement.

Britec Electric specialized in research and development of lightening protection devices. The new

series of surge protection device Type1,Type2 and Type3,BR PV and SPDs for Date offer the market

with a new choice of high quality surge arresters.

Established in 2003, is a professional surge protective devices (SPD) manufacture with many years

experiences. We can provide you quality products, competitive price, prompt delivery and excellent

service.

We can provide you best shopping experience with perfect management, professional technical

personnel and well-trained workers.

There are some series of surge protection device: Type1, Type2, Type3, PV (solar) and SPDs for Date.

More products informations, can view at our website: http://www.britecelectric.com/.

With best service, all inquiry will be replied in 24hrs. If you required special products, our technical

department can develop products according to customer's requirement and make the tooling in 45 days.

All our products have five years warranty.

Our team keep developing newest product for our customer, so that our products quality and

performance can meet and exceed customer expectations.

We can provide professional solutions for customers. Any questions regarding surge protectiion can

contact us for professional solution!
